Product Description:

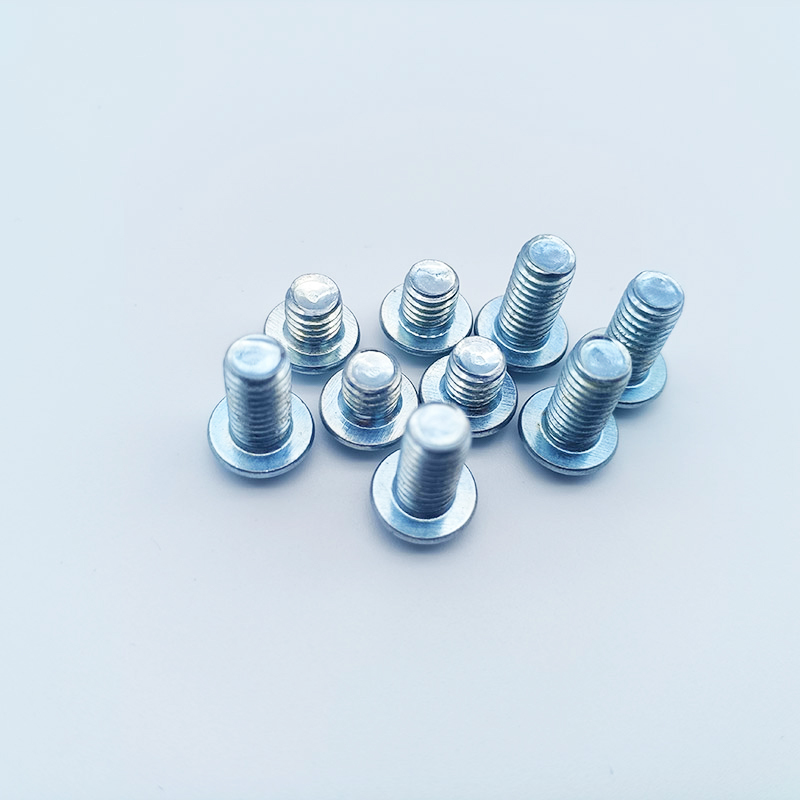

Grade 10.9 Surface Finish Blue And White Zinc Pan Head Screw
Pan head design (dome and flat bottom) provides a larger pressure bearing surface to prevent surface damage to the connecting parts. It is a high-strength industrial fastener with a strength of 10.9 grade, suitable for heavy-duty connections;Its surface is blue white zinc plated and can pass 48 hour salt spray testing, combining rust prevention and aesthetics. The internal hexagonal interface (requires installation with a hexagonal wrench) ensures stable torque transmission and is suitable for operation in narrow spaces.

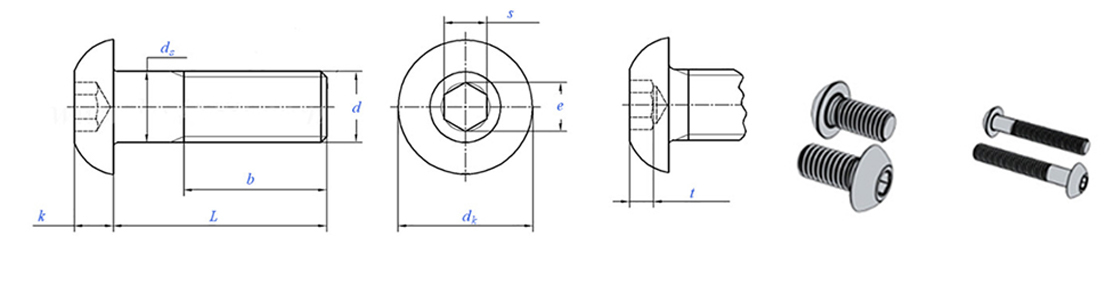

Technical Parameters:
| d | M3 | M4 | M5 | M6 | M8 | M10 | M12 | M16 |
| P | 0.5 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 |
| b | Standard | 18 | 20 | 22 | 24 | 28 | 32 | 36 | 44 |
| dk | Max | 5.7 | 7.6 | 9.5 | 10.5 | 14 | 17.5 | 21 | 28 |
| Min | 5.4 | 7.24 | 9.14 | 10.07 | 13.57 | 17.07 | 20.48 | 27.48 |
| ds | Max | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 16 |
| Min | 2.86 | 3.82 | 4.82 | 5.82 | 7.78 | 9.78 | 11.73 | 15.73 |
| k | Max | 1.65 | 2.2 | 2.75 | 3.3 | 4.4 | 5.5 | 6.6 | 8.8 |
| Min | 1.4 | 1.95 | 2.5 | 3 | 4.1 | 5.2 | 6.24 | 8.44 |
| t | Min | 1.04 | 1.3 | 1.56 | 2.08 | 2.6 | 3.12 | 4.16 | 5.2 |
| e | Min | 2.30 | 2.87 | 3.44 | 4.58 | 5.72 | 6.86 | 9.15 | 11.43 |
| s | Standard | 2 | 2.5 | 3 | 4 | 5 | 6 | 8 | 10 |
| Max | 2.08 | 2.58 | 3.08 | 4.10 | 5.14 | 6.14 | 8.18 | 10.18 |
| Min | 2.02 | 2.52 | 3.02 | 4.02 | 5.02 | 6.02 | 8.03 | 10.03 |
Advantage:
Grade 10.9 Surface Finish Blue And White Zinc Pan Head Screw
The surface zinc layer isolates water vapor and oxygen, making it suitable for humid environments such as bathroom furniture and outdoor scaffolding. It has a lifespan 3-5 times longer than ordinary steel screws.
Economical and practical
The price is only 1/3-1/2 of stainless steel screws, suitable for scenarios with limited budget but requiring rust prevention.
The contact area under force is large
The diameter of the disc head is larger (compared to round/flat heads), which disperses pressure and prevents the screw head from getting stuck in soft materials such as plastic and wood fiberboard.
Applications:
Home appliance production
The assembly of televisions, refrigerators, ovens, coffee makers, and water dispensers all require the fastening of pan head screws.
For the installation of large-sized televisions, a large number of pan head screws are needed to connect them.
Automobile production
The fastening of engine components and the connection of interior parts require pan head screws.
