Hexagonal Socket Head Bolt Main Application Scenarios
These screws are commonly used in various industrial applications that require a strong and reliable connection. They are ideal for use in furniture assembly,automotive, aerospace, and construction industries. These screws are perfect for securing materials to each other or to a surface, and they can be used in conjunction with other fasteners such as nuts, washers, and dowel screw turn bolts.
Home appliance production
The assembly of televisions, refrigerators, ovens, coffee makers, and water dispensers all require the fastening of pan head screws.For the installation of large-sized televisions, a large number of pan head screws are needed to connect them.
Automobile production
The fastening of engine components and the connection of interior parts require pan head screws.
Furniture assembly
Connectors, hinges, or shelves used to secure fiberboard furniture such as cabinets, bookshelves, drawers, etc.Suitable for installing non high load-bearing parts such as backboards and side panels.
Technical Parameters:
| d | M3 | M4 | M5 | M6 | M8 | M10 | M12 | M16 |
| P | 0.5 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 |
| b | Standard | 18 | 20 | 22 | 24 | 28 | 32 | 36 | 44 |
| dk | Max | 5.7 | 7.6 | 9.5 | 10.5 | 14 | 17.5 | 21 | 28 |
| Min | 5.4 | 7.24 | 9.14 | 10.07 | 13.57 | 17.07 | 20.48 | 27.48 |
| ds | Max | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 16 |
| Min | 2.86 | 3.82 | 4.82 | 5.82 | 7.78 | 9.78 | 11.73 | 15.73 |
| k | Max | 1.65 | 2.2 | 2.75 | 3.3 | 4.4 | 5.5 | 6.6 | 8.8 |
| Min | 1.4 | 1.95 | 2.5 | 3 | 4.1 | 5.2 | 6.24 | 8.44 |
| t | Min | 1.04 | 1.3 | 1.56 | 2.08 | 2.6 | 3.12 | 4.16 | 5.2 |
| e | Min | 2.30 | 2.87 | 3.44 | 4.58 | 5.72 | 6.86 | 9.15 | 11.43 |
| s | Standard | 2 | 2.5 | 3 | 4 | 5 | 6 | 8 | 10 |
| Max | 2.08 | 2.58 | 3.08 | 4.10 | 5.14 | 6.14 | 8.18 | 10.18 |
| Drive Style | Hex |
| Corrosion Resistance | Yes |
| Thread Diameter | 3-16mm |
| Head Style | Pan head |
| Thread Type | Coarse |
| Length | 12-100mm |
Advantages:
The hexagonal head bolt has high torque transmission capacity, and its hexagonal hole depth reaches 2/3 of the head height (ISO 4762 standard), which can withstand installation torque of ≥ 12.9 grade strength bolts (up to 400N · m). Compared with the cross groove, the anti torsion capacity is increased by more than 50%. Mainly suitable for the installation and fastening of various types of machinery, usually used in industrial product manufacturing.
Packaging:
 |  |  |
| Carton Packaging | Outer Cartonbox Packaging | Pallet Packaging |
| Bolts are packed in neutral packaging boxes, with standard quantities arranged in small cartons. The exact number of units per carton will be confirmed with the customer to align with their specific requirements. Customized packaging configurations are available upon request. | The small cartons are then consolidated into larger master cartons for secure transportation and storage. The quantity per master carton can be customized based on client specifications or aligned with standard logistical requirements. | The palletized units are securely wrapped with waterproof film and reinforced with packaging straps. Customer-specific shipping marks or labels are affixed to each pallet, ensuring clear identification and compliance with logistics requirements. This final packaging stage guarantees weather-resistant protection and stability during transportation. |
Product Tags:
|
|

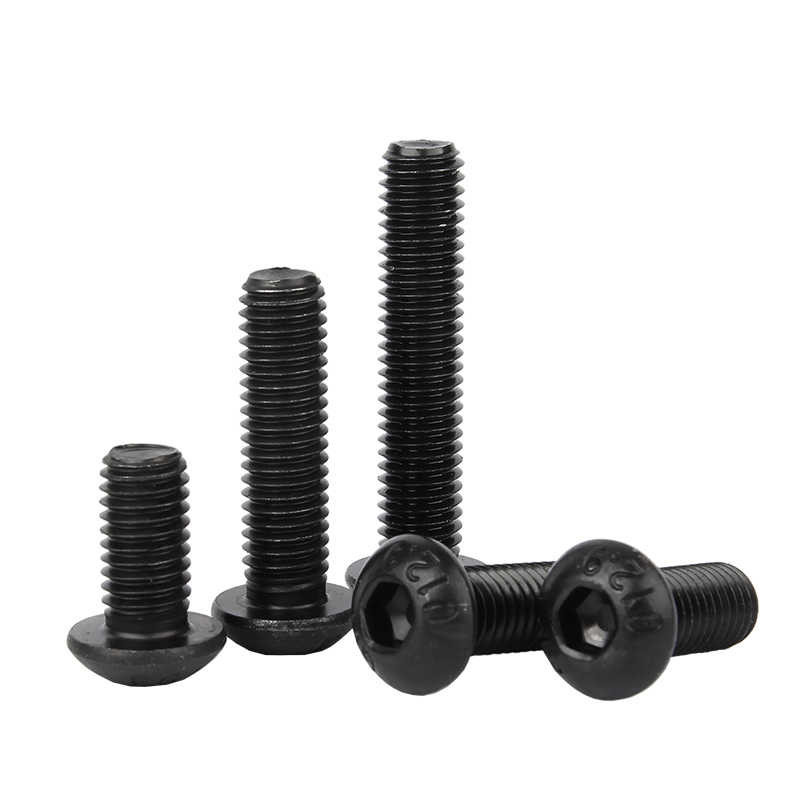

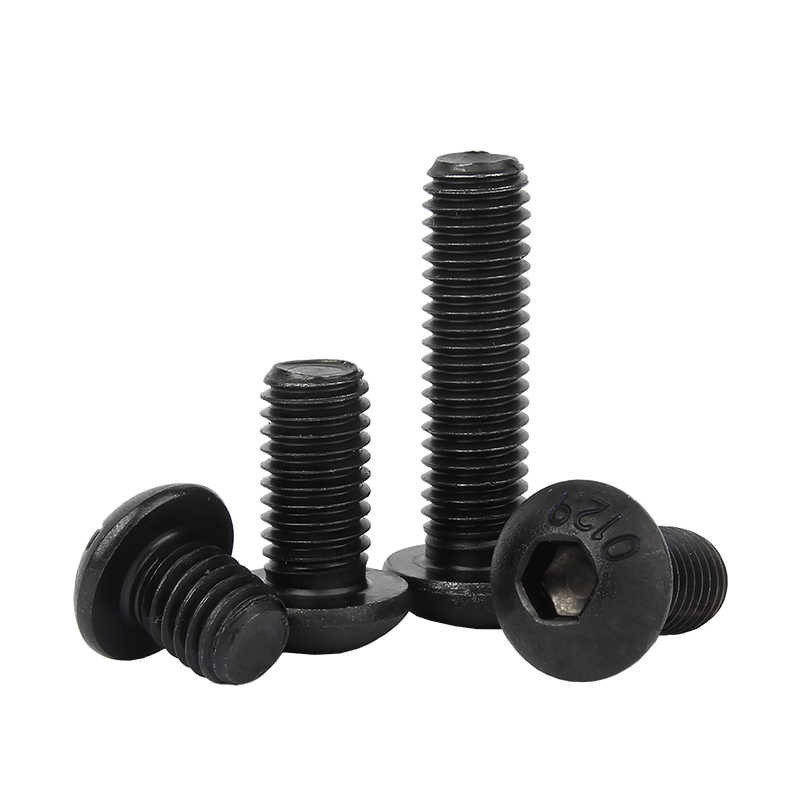

M6 Pan Head Screws Grade 12.9 Blackened Screws Fully Half Threaded Images
|
