Phillips Hex Bolt 12.9 Grade Nickel Plating M3 To M8 With Washer Set

  • 1
  • 2

Brand Name : YB

Model Number : Hex Head Screw

Certification : ISO9001,TUV

Place of Origin : ZheJiang China

MOQ : 10000

Price : Negotiation

Payment Terms : T/T

Supply Ability : 5000000 PCS/Year

Delivery Time : 7-25Days

Packaging Details : Carton Box/Pallet/Customized

Surface : Nickel Plating

Payment : TT

Color : Silver, Gray

Head Type : Hexagon Head

Standard : DIN,GB

Application : Machinery,construction,automative and so on

Grade : 4.8/6.8/8.8/10.9/12.9

Transport Package : Carton Box/Pallet

Contact Now

Phillips Hex Bolt 12.9 Grade Nickel Plating M3 To M8 With Washer Set

Phillips Hex Bolt 12.9 Grade Blue-White Zinc Plated M3 to M8 with Washer Set


1.Products Details:

This assembly is a pre-configured fastening solution combining three components:
1. Cross Recessed Hexagon Head Bolt: Features a hexagonal shank for wrench tightening and a cross-shaped recess (Phillips drive) for screwdriver compatibility, offering dual-tool accessibility.
2. Spring Washer: A helical washer that provides tension and vibration resistance, preventing loosening under dynamic loads.
3. Flat Washer: A thin circular washer placed between the bolt head and the surface, distributing pressure evenly and protecting the material from damage.


2.Key Features:

- Saves time by eliminating separate component handling during installation.
- Spring washer reduces loosening in high-vibration environments (e.g., automotive, industrial machinery).
- Flat washer prevents bolt head indentation on soft materials (e.g., wood, aluminum).
- Hex head + cross recess allow flexibility in installation tools.


3.Technical Parameters of Hex Bolt with lock and plain washer




d M4 M5 M6 M8
a MAX 1.4 1.6 2 2.5
b MIN 38 38 38 38
h 0.8 1 1.6 1.6
H 2.75 3.25 4 5
dc 9 10 12 16
d2 6.78 8.75 10.71 13.64

Phillips Hex Bolt 12.9 Grade Nickel Plating M3 To M8 With Washer Set


4.Certificate Display

Phillips Hex Bolt 12.9 Grade Nickel Plating M3 To M8 With Washer Set Phillips Hex Bolt 12.9 Grade Nickel Plating M3 To M8 With Washer Set Phillips Hex Bolt 12.9 Grade Nickel Plating M3 To M8 With Washer Set

5.Production Process

Phillips Hex Bolt 12.9 Grade Nickel Plating M3 To M8 With Washer Set

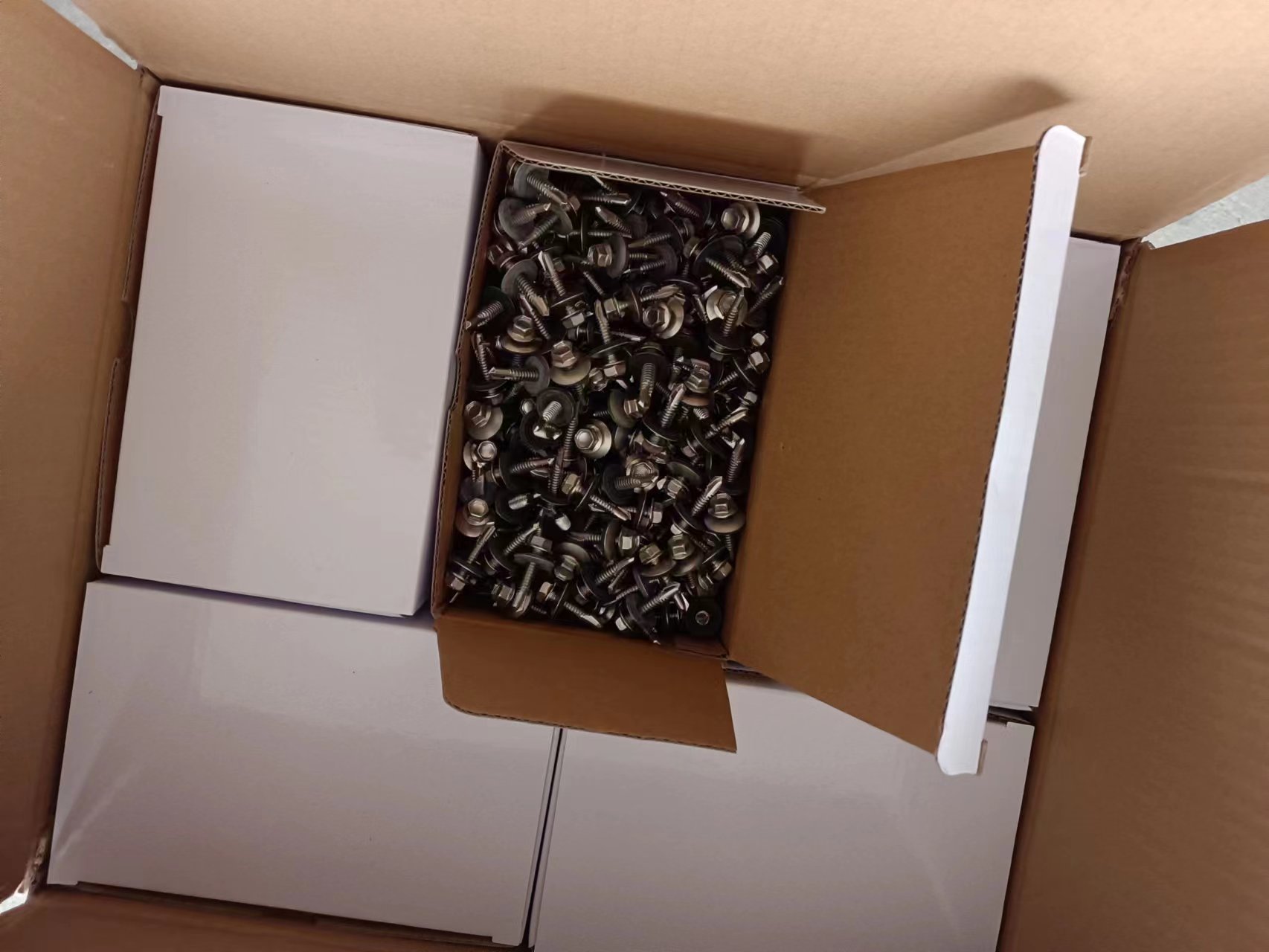

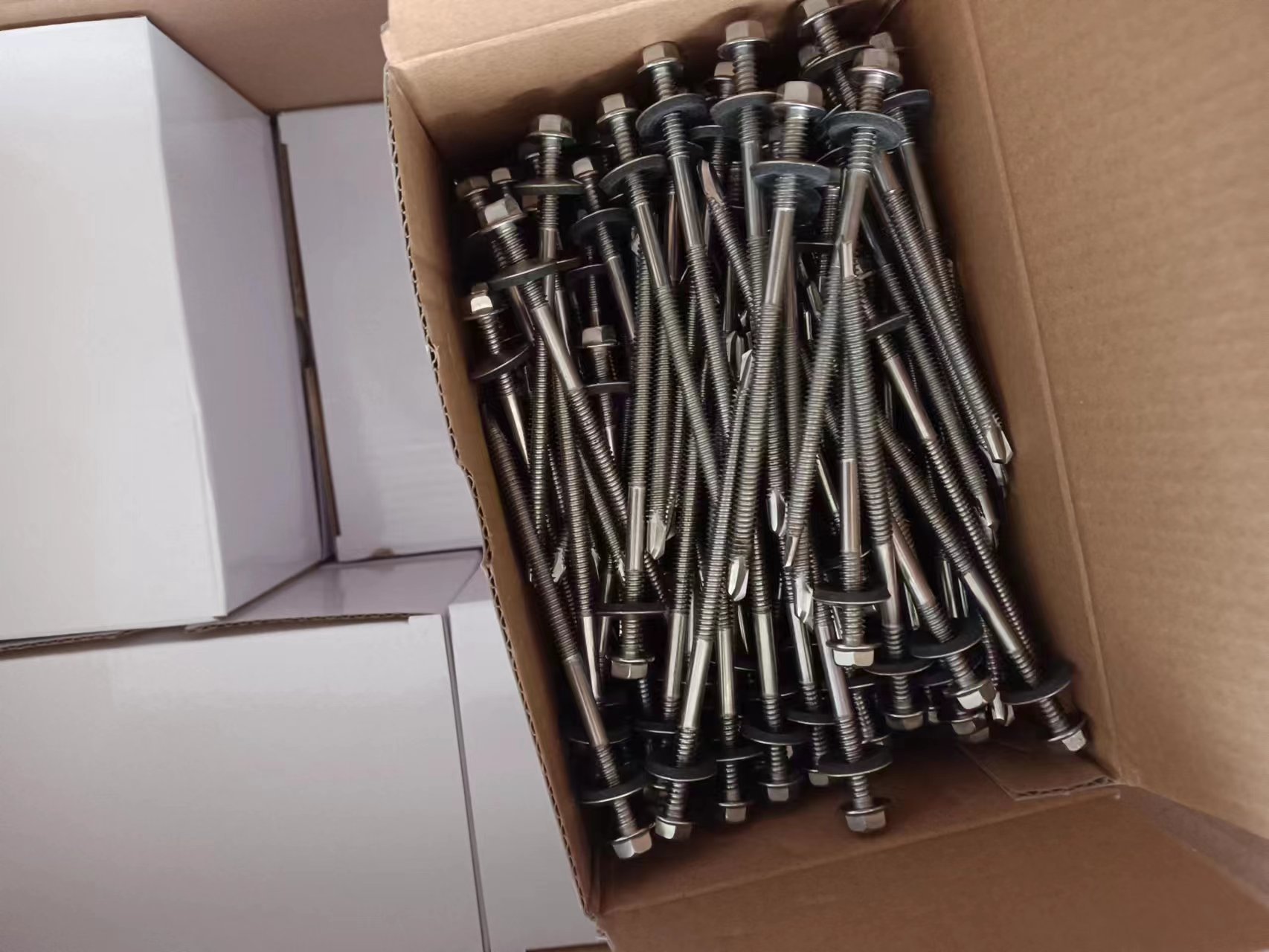

6.Packaging and shipping Details

Phillips Hex Bolt 12.9 Grade Nickel Plating M3 To M8 With Washer SetPhillips Hex Bolt 12.9 Grade Nickel Plating M3 To M8 With Washer SetPhillips Hex Bolt 12.9 Grade Nickel Plating M3 To M8 With Washer Set
